AcoustiClip Solid Party Wall Stud System Soundproof Kit

The AcoustiClip Solid Wall Stud System Kit offers the highest level of soundproofing for party walls. It effectively blocks sound transfer by soundproofing walls against high noise levels using the AcoustiClip System on a stud wall. This kit suits home cinemas, studios, and rooms requiring the best sound insulation solution. These soundproof kits offer great value as they are discounted compared to buying the materials individually.

The AcoustiClip Solid Wall Stud System offers the highest noise reduction of the AcoustiClip wall systems. Combining the AcoustiClip System onto a stud frame against a party wall provides the most robust noise reduction levels against airborne and vibration sounds. A noise reduction level of 69dB means this is an ideal solution for use in rooms requiring additional noise control, like studios and home cinemas, and blocking unwanted neighbour noise through party walls.

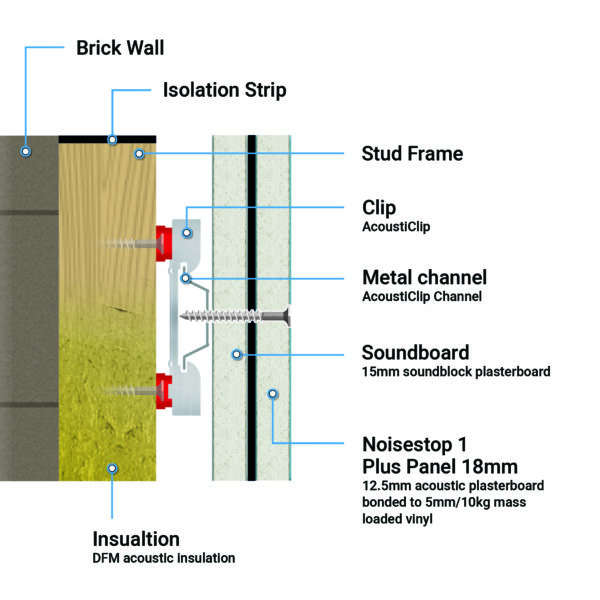

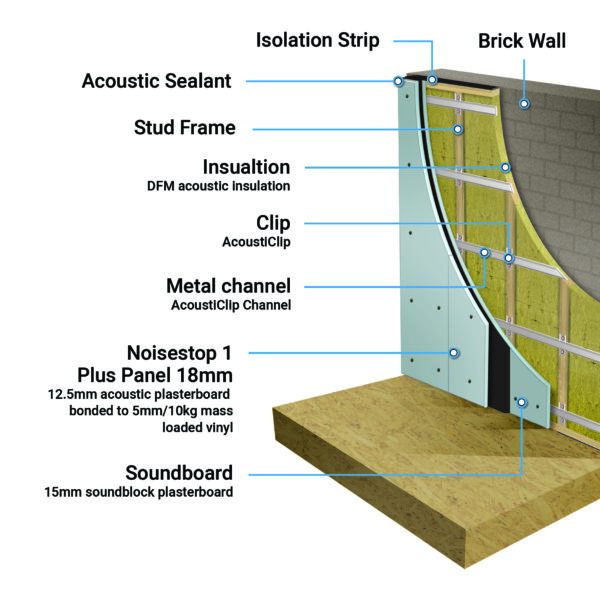

All AcoustiClip soundproof systems combine products with high mass, excellent sound absorption, and the decoupling effect of the AcoustiClip. The acoustic kits include the AcoustiClip and AcoustiChannel, acoustic insulation slabs, two layers of soundproof panels, a 15mm soundproof plasterboard, denser than standard board, and the 18mm Noisestop 1 Plus Panel. This panel features a 10kg mass-loaded vinyl acoustic membrane pre-bonded to the acoustic plasterboard. Additionally, the systems include acoustic sealant tubes to ensure effective acoustic sealing of the boards.

Materials supplied with this system:

• Acoustic insulation 50mm/60kg/m3 – High-density sound insulation slabs
• AcoustiClip – Sound isolation anti-vibration clip
• AcoustiChannel – Metal furring channel 1800mm
• Soundboard 15mm – High-density soundblock paperboard 1200mm x 1200mm (1.44sqm)
• Noisestop 1 Plus Panel 18mm –  12.5mm soundboard laminated with 10kg mass-loaded vinyl 1200mm x 1200mm (1.44sqm)
• Acoustic sealant 310ml

Materials supplied with this system:

• Acoustic insulation 50mm/60kg/m3 – High-density sound insulation slabs
• AcoustiClip – Sound isolation anti-vibration clip
• AcoustiChannel – Metal furring channel 1800mm
• Soundboard 15mm – High-density soundblock paperboard 1200mm x 1200mm (1.44sqm)
• Noisestop 1 Plus Panel 18mm –  12.5mm soundboard laminated with 10kg mass-loaded vinyl 1200mm x 1200mm (1.44sqm)
• Acoustic sealant 310ml

Select the required Total Wall Area from the dropdown box at the top of the page to see the quantities supplied with this system.

We recommend ordering areas individually and adding them to the basket rather than adding them to one large area. You can order multiple areas in the same order.

Quantity of materials supplied in your order

The quantity of clips and channels supplied in this kit has been calculated for a ceiling of up to 2.4m, which requires five rows. For walls over 2.4m, additional AcoustiClips and AcoustiChannel might be needed.

• System thickness 77mm (from the stud frame)
• Noise reduction 69dB (decibels explained
• Fire one hour

Thermal Resistance R:

• Acoustic plasterboard 12.5 mm = 0.050 m2 K/W
• Acoustic plasterboard 15.0 mm = 0.060 m2 K/W
• Mass-loaded vinyl 0.14 m² K/W
• Acoustic insulation 2.90 W/mK

Thermal Conductivity λR:

• Acoustic plasterboard 0.25 W/mK to BS EN 12524:2000
• Mass-loaded vinyl 0.037 W/mK
• Acoustic insulation 0.034 W/mK

Reaction to Fire

• Acoustic plasterboard 12.5mm & 15mm Euroclass A2-s1, d0
• Mass-loaded vinyl 10kg EN 13501-1 B-s2,d0 (2)
• Acoustic insulation EN13501-1: A1

Untreated brick wall DnT,w

Single skin 100mm brick wall 38db

Treated brick wall DnT,w

AcoustiClip Solid Wall Stud System 69dB

Improvement DnT,w

Noise reduction with treatment 31dB

Note: Every 10 decibels(dB) reduction in noise level is roughly perceived as a halving of the perceived loudness. So, for instance, if you have a sound that measures 70dB and it decreases to 60dB, it would sound about half as loud to the human ear. Decibels explained.

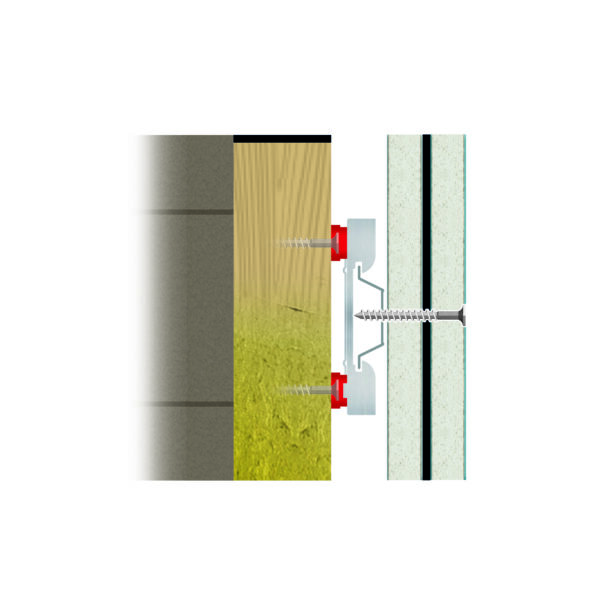

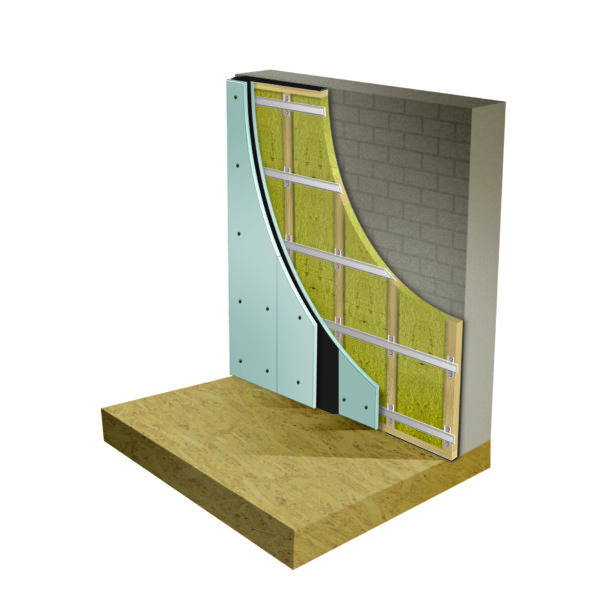

• Incorporate the AcoustiClip Solid Wall Stud System onto a timber stud frame. If you are building a new stud wall, isolate the top and bottom with Noisestop Isolation Strips.
• Fill the cavity of the stud frame with the DFM acoustic insulation slabs to reduce sound resonating inside the void.
• Screw the AcoustiClip into the stud frame. Space the clips vertically at 600mm centres with a row of clips 100mm from the bottom of the wall and 150mm from the ceiling. The clips should be no more than 1200mm apart horizontally (see the diagram below).
• Clip the AcoustiChannel into the clips, join the lengths of the channel by overlapping them by 100mm and screwing them together with self-tapping 25mm drywall screws. the 15mm Soundblock plasterboard into the AcoustiChannel using 25mm self-drilling screws and then the Noisestop 1 Plus Panel over the top with 50mm self-drilling screws. Leave a 2-3mm gap around the wall’s perimeter to reduce noise transfer into the adjoining walls, ceiling and floor.
• Acoustic sealant is applied between each panel and to the wall’s perimeter to ensure an airtight seal.
• Finish the soundproof system as you would standard plasterboard. The panels are supplied with tapered edges, which allows for dry lining or plastering.
• If you are reinstating electrical outlets, use acoustic putty pads inside the back boxes.

Spacing AcoustiClips

Horizontally – Fix an AcoustiClip at the start and end of each row. AcoustiClips are spaced at a maximum of 1200mm centres along the AcoustiChannel.

Vertically – AcoustiClips are fitted a maximum of 600mm horizontally, 100mm from the floor and 150mm from the ceiling.

Product Brochure

Performance Data

Fitting

System Quantities
